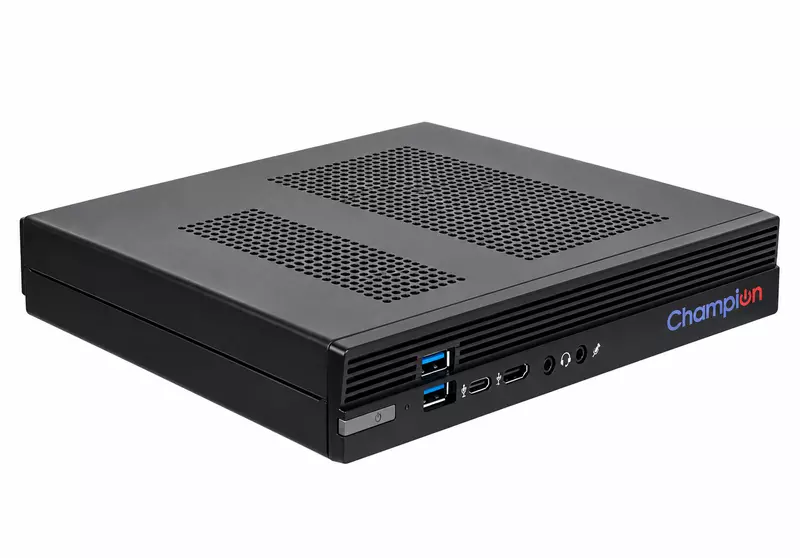

Champion MPC-01 Mini PC – Specifications
A compact business desktop for everyday office work, education, digital signage and space-conscious deployments. This product listing is for the Intel Core i5-12400T, 8GB memory and 512GB SSD configuration.
Feature
| Details
|
|---|
Processor
| Intel Core i5-12400T, 12th Gen, 35W TDP
|
Memory
| 8GB DDR4-3200 installed; 2 SO-DIMM slots; expandable up to 64GB
|
Storage
| 512GB SSD installed; platform supports 1× M.2 2280 PCIe Gen 3×4/SATA and 1× SATA III 2.5-inch drive
|
Operating system
| Windows 11 Home on this configuration; platform supports Windows 11 and Linux
|
Wireless & LAN
| Wi-Fi 5 (802.11ac), Bluetooth 5.0 and RJ45 LAN
|
Display outputs
| 1× HDMI 2.0b and 2× DisplayPort 1.4a; up to 3 concurrent displays
|
Front I/O
| 2× USB 3.2 Gen 1 Type-A, 2× USB 3.2 Gen 2 Type-C, CTIA combo audio jack and microphone input
|
Rear I/O
| 2× USB 3.2 Gen 1 Type-A, 2× USB 2.0 Type-A, HDMI, 2× DisplayPort, RJ45 LAN and 5.5mm DC-in; VGA or RS-232 is optional
|
Form factor
| 205 × 176 × 33 mm; approximately 1.1L; Kensington lock slot
|
Warranty & origin
| 1-year standard warranty; Made in India
|
Built for productive work
- Compact 1.1L chassis helps free up desk space and supports a tidy workstation setup.
- Intel Core i5-12400T performance for business applications, office productivity and multitasking.
- Three display outputs support multi-screen work using HDMI and dual DisplayPort.
- Two Type-C ports and multiple Type-A ports make it easy to connect everyday peripherals.
- Two SO-DIMM slots and flexible storage options support future memory and drive upgrades.
- VESA mounting and stand options help adapt placement to the workspace.
Frequently asked questions
Which processor is included?
This listing includes the Intel Core i5-12400T (12th Gen, 35W). The LIVA One H610 platform supports additional compatible CPU options, but they are not part of this listed configuration.
Can memory be upgraded?
Yes. It has two DDR4 SO-DIMM slots and supports up to 64GB total memory. The listing ships with 8GB installed.
Can I connect three monitors?
Yes. The platform provides one HDMI 2.0b and two DisplayPort 1.4a outputs and supports up to three concurrent displays.
What storage can it support?
This listing includes a 512GB SSD. The platform supports one M.2 2280 PCIe Gen 3×4/SATA drive and one 2.5-inch SATA III drive.
Are VGA, RS-232, TPM and the internal speaker included?
These are optional platform features and are not included unless specifically stated in the order configuration.
What accessories and power adapter are included?
Stand, VESA mount and adapter are platform accessories. Adapter rating and box contents can vary by CPU configuration; confirm the supplied items for this 35W model when ordering.
What warranty is provided?
This listed configuration includes a 1-year standard warranty.
LAN controller, wireless module and in-box accessories are subject to the delivered configuration. Optional VGA/RS-232, TPM 2.0 and 2W internal speaker are not included unless specified.
